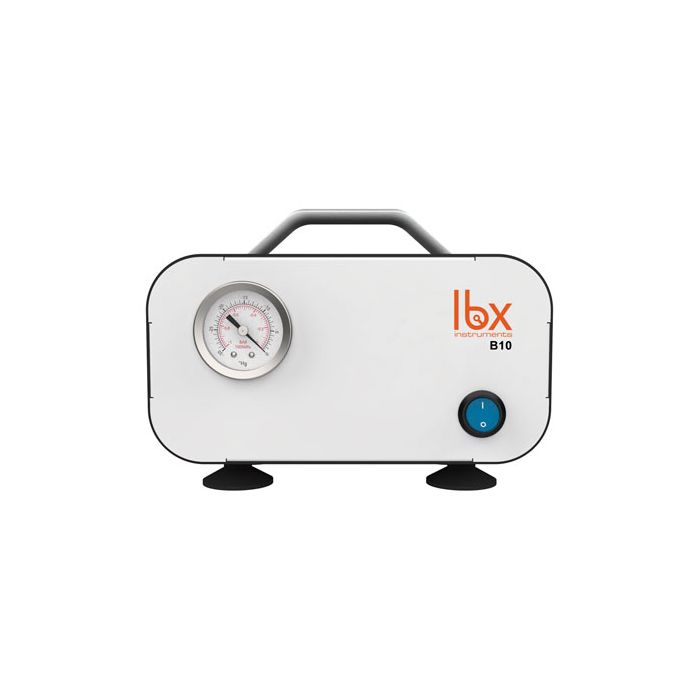

LBX B Oil-Free Vacuum Pump with Vacuum Gauge

Compact, lightweight vacuum pump designed for continuous laboratory use. Fully oil-free circuit — vacuum generated carries no lubricant vapour, making it compatible with filtration, evaporation and any application where contamination is a concern. Vacuum gauge factory-fitted as standard; no additional instrumentation needed to monitor the process.

Key specifications

• Technology: 100% oil-free, no scheduled maintenance
• Vacuum gauge: Included as standard — non-adjustable vacuum
• Noise level: <40 dB — suitable for open bench use without acoustic shielding
• Continuous operation: Rated for 24 h cycles
• Connector: Ø 6 mm tube
• Power supply: 100-220 V / 50-60 Hz — compatible with European and US mains
• Dimensions (L x W x H): 192 x 100 x 135 mm
• Warranty: 2 years

Built-in protection

The LBX B incorporates three independent protection systems: electrical overload, internal overtemperature and short circuit. Runs unattended without risk of damage to the pump or connected assembly.

Typical applications

Büchner funnel vacuum filtration, benchtop rotary evaporation, SPE manifolds, small-scale vacuum distillation and any setup requiring clean, stable vacuum on a continuous basis. Compact footprint allows bench placement alongside the instrument — no floor space required.

Advantage over oil-sealed pumps

No oil means no lubricant changes, no oil mist in the vacuum line and no suckback risk on power loss. Maintenance is limited to occasional inspection of the inlet filter — nothing more.
