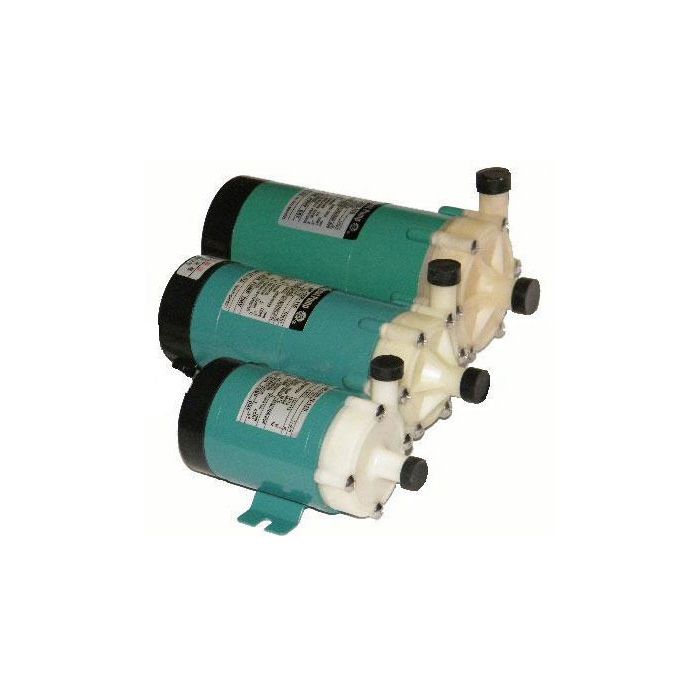

MP-100R Magnetic Drive Centrifugal Pump, 60 L/min

Centrifugal pump designed for liquid circulation and transfer in laboratory and chemical industry applications. Magnetic drive transmission — no mechanical shaft seal, eliminating leak risk from rotary seal wear.

Technical Specifications

• Maximum flow rate: 60 L/min
• Maximum pressure: 0.5 bar
• Transmission: Magnetic drive coupling
• Wetted parts: Chemically resistant materials
• Self-priming: No — requires priming before start-up

Typical Applications

Liquid circulation in thermostatic baths, reactors, cooling systems and laboratory circuits. Also suited for draining vessels containing chemically aggressive liquids where a conventional mechanical seal would not hold.

The magnetic drive makes this pump particularly appropriate where liquid must not contact the external environment — concentrated acids, bases or organic solvents.

Available Range

The MP-100R is the highest flow rate model in the series. The range covers 8 to 60 L/min — refer to intermediate models where a lower flow rate is required.

Operating Limitations

Not self-priming: the pump body must be completely filled with liquid prior to start-up. Not suitable for dry running or for fluids containing suspended solids.
