P10+ Touch Peristaltic Dispensing Pump LCD Touchscreen RS485/MODBUS 220V
In stock
| SKU | Product Name | Price | Qty | |
|---|---|---|---|---|
| PUMP-30T-001 | Dispensing peristaltic pump LBX P10 Touch 0.1 - 300 rpm |
€1,186.33
|
|
|
| PUMP-60T-001 | Dispensing peristaltic pump LBX P10 Touch 0.1 - 600 rpm |
€1,459.48
|
|
|
| PUMP-32T-001 | LBX P10 Touch Peristaltic Pump 2 channels 01 - 300 rpm EU cable |
€1,443.81
|
|
|
| PUMP-62T-001 | LBX P10 Touch Peristaltic Pump 2 channels 01 - 600 rpm EU cable |
€1,736.59
|
|
|
| PUMP-33T-001 | LBX P10 Touch Peristaltic Pump 3 channels 01 - 300 rpm EU cable |
€1,644.74
|
|
|
| PUMP-63T-001 | LBX P10 Touch Peristaltic Pump 3 channels 01 - 600 rpm EU cable |
€1,937.52
|
|

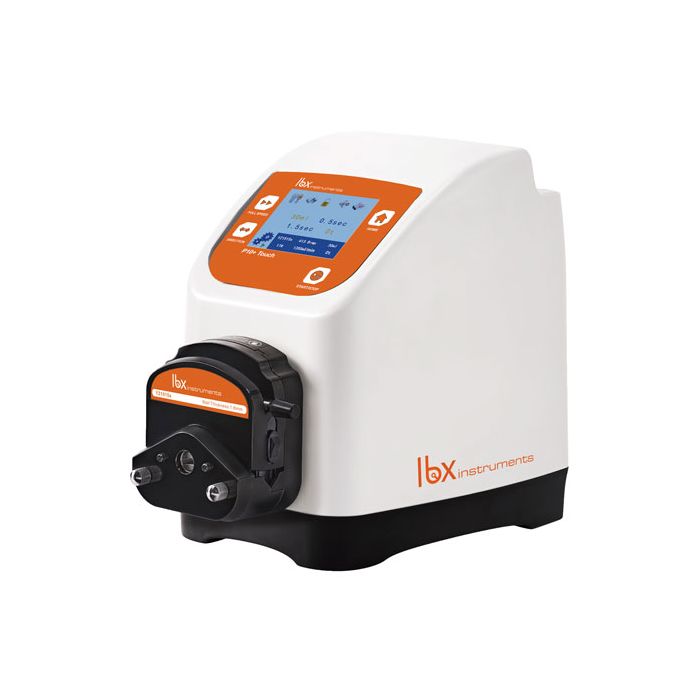

P10+ Touch Peristaltic Dispensing Pump LCD Touchscreen RS485/MODBUS 220V
Peristaltic pump designed for volumetric dispensing and continuous liquid transfer. LCD touchscreen simplifies setup — no physical keypad required. Two operating modes selectable directly from the screen: continuous transmission or automatic dosing with programmable volume.
Operating Modes
Transmission mode runs as a continuous-flow pump — suited to transfers, recirculation or reagent feeding. Dosing mode allows the operator to programme an exact dispensing volume and repeat the cycle automatically, removing manual error from container filling or sample preparation.
Technical Specifications
- Type: Peristaltic with dispensing function
- Control: LCD touchscreen
- Modes: Continuous transmission / Automatic dosing
- Power supply: 220V, 50-60 Hz
- Communication: RS485/MODBUS
- Motor: Low consumption, low noise
- Warranty: 2 years
Included Accessories
- Silicone tubing: 2 m — OD: 9.6 mm / ID: 6.4 mm
- Foot pedal: Manual flow control via foot operation
- Check valves: 2 units
- Plastic connectors: 2 units
- Filling nozzle: 1 unit
Integration and Connectivity
RS485/MODBUS protocol connects the pump to automation or SCADA systems without additional hardware — practical for semi-automatic filling lines or laboratories running centralised equipment control. The included foot pedal provides a manual control path when the operator needs both hands free.
| Brand | LBX instruments |
|---|
