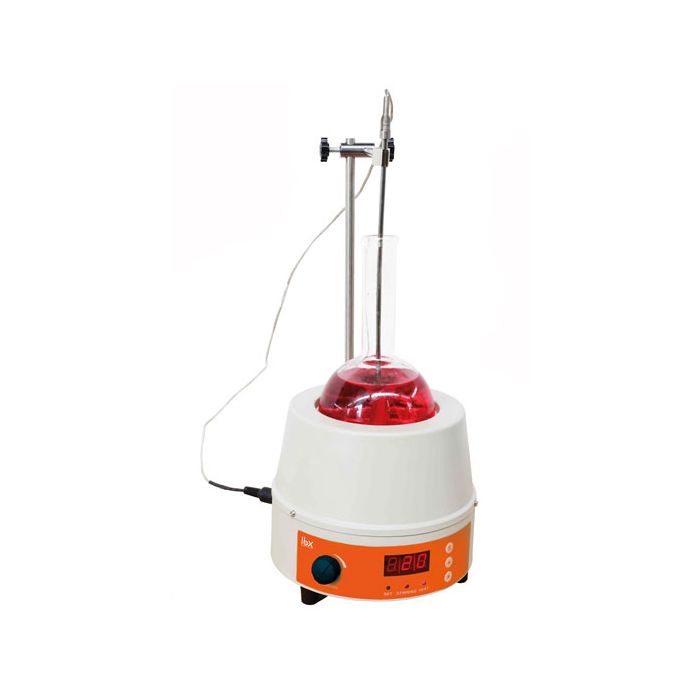

Heating Mantle with Magnetic Stirring and Digital Display HM02-D Pt100 Sensor
Electronically controlled heating mantle with integrated magnetic stirring and digital display. The external Pt100 probe monitors liquid temperature directly—not surface temperature. Stirring range 0 to 1600 rpm. Surface reaches up to 450 °C. Simultaneous heating and stirring in continuous mode. Supplied with stirring bar, aluminium support rod, clamp, and Pt100 probe. 220 V / 50-60 Hz. 2-year warranty.
In stock
SKU:
26937
As low as:
€248.84
As low as:
Heating Mantle with Magnetic Stirring and Digital Display HM02-D
Electronically regulated heating mantle with integrated magnetic stirring. The external Pt100 probe measures temperature directly in the liquid and displays it on the digital screen—independent of surface temperature readings.
Key Specifications
- Temperature control: Electronic regulation with digital display
- Probe: External Pt100 for real-time liquid temperature monitoring
- Maximum surface temperature: 450 °C
- Stirring speed: 0 – 1600 rpm
- Operation: Simultaneous heating and stirring, continuous mode
- Power supply: 220 V / 50-60 Hz
- Warranty: 2 years
Typical Applications
Reflux reactions, synthesis in round-bottom flasks, controlled heating of mixtures requiring constant agitation. Widely used in organic chemistry, pharmaceutical, and quality control laboratories.
Supplied With
- Stirring bar
- Aluminium support rod
- Clamp
- Pt100 temperature probe
Technical Note
Liquid temperature will always be lower than the 450 °C surface rating—heat losses between mantle and flask account for the difference. Closed-loop control via the Pt100 probe in the liquid compensates for this and prevents unintended overheating.
| Brand | LBX instruments |
|---|
