HMM1 Multi-Position Heating Mantle up to 450 °C Electronic Control 220 V
In stock
| SKU | Product Name | Price | Qty | |
|---|---|---|---|---|
| MRHM-254-001 | Heating mantle multi-row HMM1 250 ml 4 rows EU plug |
€257.53
|
|
|
| MRHM-256-001 | Heating mantle multi-row HMM1 250 ml 6 rows EU plug |
€373.57
|
|
|
| MRHM-504-001 | Heating mantle multi-row HMM1 500 ml 4 rows EU plug |
€274.18
|
|
|
| MRHM-506-001 | Heating mantle multi-row HMM1 500 ml 6 rows EU plug |
€390.70
|
|

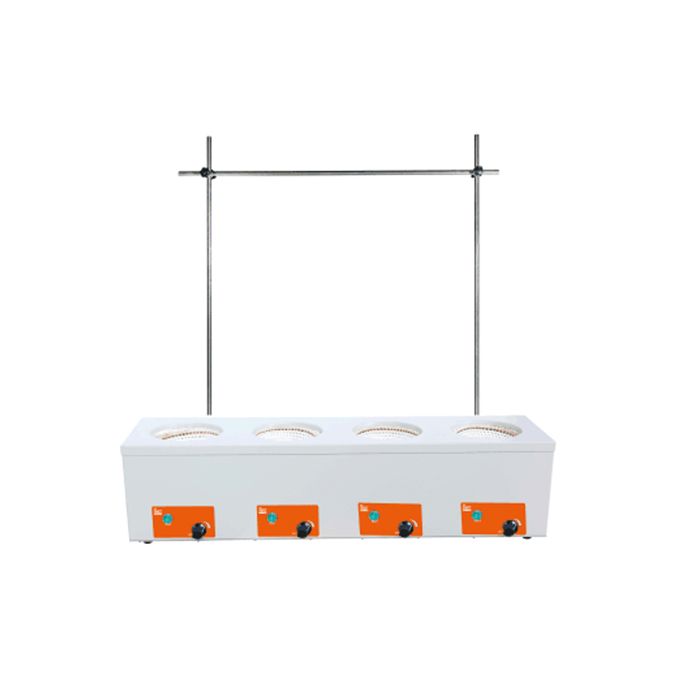

HMM1 Multi-Position Heating Mantle up to 450 °C
Heating mantle with multiple working positions and independent electronic control at each station. Suited to continuous heating setups—reflux, distillation, parallel synthesis—where individual temperature control across positions is required.
Key Features
- Maximum temperature: 450 °C at the mantle surface
- Control: Electronic, independent per position
- Operating mode: Continuous
- Thermal response: Rapid setpoint adjustment, uniform heat distribution
- Materials: Corrosion- and ageing-resistant
- Power supply: 220 V / 50-60 Hz
- Warranty: 2 years
Typical Applications
Reflux assemblies, distillations, and parallel synthesis runs. Each flask position can be held at a different temperature within the same unit—useful in organic synthesis and process development.
Liquid temperature is always lower than the mantle surface temperature due to heat loss. Account for this offset when setting the target temperature.
Included Accessories
Supplied with an aluminium support rod and clamp for immediate setup. Ready to use out of the box—no additional accessories required.
Technical Specifications
- Maximum surface temperature: 450 °C
- Voltage: 220 V / 50-60 Hz
- Control: Electronic, per position
- Included accessories: Aluminium support rod + clamp
- Warranty: 2 years
| Brand | LBX instruments |
|---|
