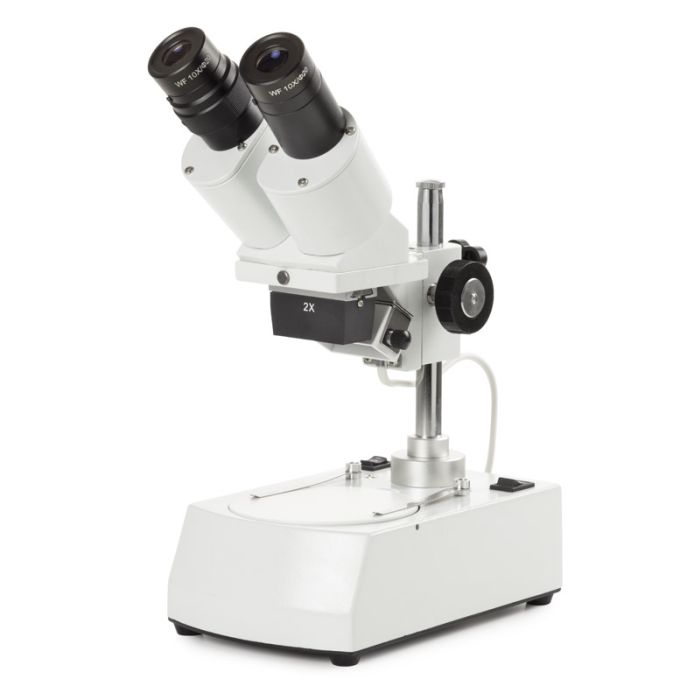

Binocular Stereo Microscope AP-5 Euromex 20x Incident and Transmitted Illumination

The AP-5, part of the Euromex AP series, is designed for educational use. Compact and robust. The interchangeable 2x objective with WF10x eyepieces delivers 20x total magnification. Incident and transmitted tungsten illumination 12V 10W with integrated internal transformer—standard on entry-level models in this series.

Optics and Head

• Eyepieces: WF10x/20 mm pair, with rubber eyecups
• Head: Binocular with 45° inclined tubes
• Dioptre correction: On one of the eyepiece tubes
• Interpupillary distance: Adjustable 55 to 75 mm
• Objective: 2x interchangeable, compatible with 1x, 3x, 4x and 6x objectives
• Total magnification: 20x with 2x objective and WF10x eyepiece
• Optical treatment: Anti-reflection and anti-fungus coatings

Stand and Illumination

• Stand: Column type, macrometric focus, 40 mm travel
• Stage: Reversible black/white, includes glass stage plate
• Incident illumination: Tungsten 12V 10W, internal transformer
• Transmitted illumination: Tungsten 12V 10W, internal transformer

Typical Applications

Teaching laboratories in secondary schools and universities. Observation of opaque and semi-transparent specimens—insects, minerals, PCB inspection, plant tissue, dissections. Combined incident and transmitted illumination extends the range of usable specimen types compared to incident-only models.

Supply

Supplied with power cable, dust cover, spare fuse and instruction manual. Packed in polystyrene box. Euromex offers camera adapters to replace one eyepiece for image capture.
