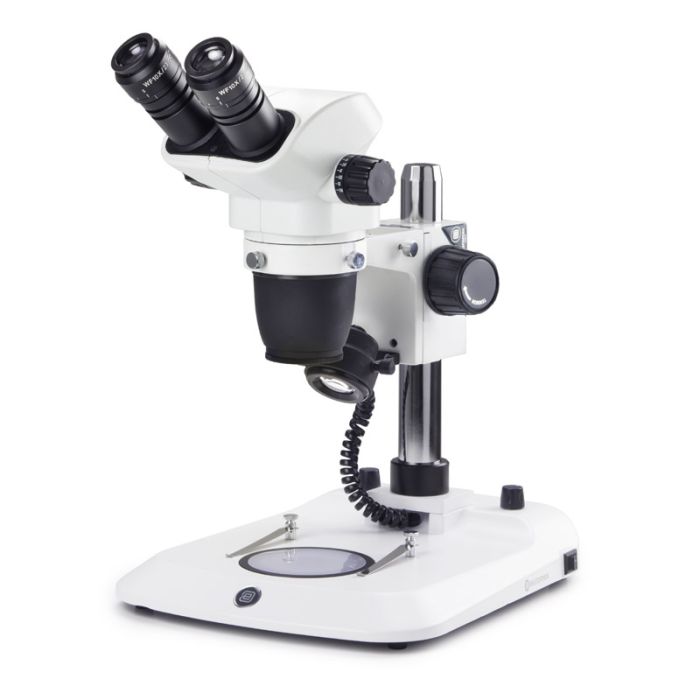

NexiusZoom EVO Binocular Stereo Microscope by Euromex with LED Illumination

Binocular stereo microscope from the NexiusZoom EVO series, manufactured by Euromex. Plan achromatic zoom objective 1:8.4, working distance 110 mm, optics with anti-fungus treatment and anti-reflection coating throughout. Head incorporates click-stops for repeatable zoom positioning. Suited to surface inspection and biological specimen examination.

Optical Specifications

• Eyepieces: HWF10x/23 mm, standard
• Objective: Plan achromatic zoom, factor 1:8.4
• Magnification range: 0.65x to 5.5x (with standard eyepieces: 6.5x to 55x)
• Field of view: 35.4 mm to 4.2 mm
• Working distance: 110 mm
• Optional auxiliary objectives: 0.3x, 0.5x, 0.75x, 1.5x and 2.0x
• Optical treatment: Anti-fungus coating and anti-reflection coating on all optical components

Head and Ergonomics

• Type: Binocular
• Eyepiece tube inclination: 45°
• Interpupillary distance: Adjustable 54 mm to 75 mm
• Click-stops: Yes—incorporated as standard on EVO models

Stand and Illumination

Ergonomic column stand with dual 3W LED illumination, each independently adjustable. Both incident and transmitted illumination can operate simultaneously. Internal power supply 100–240V. Metal construction with durable coating. Specimen holding clips included.

• Incident illumination: LED 3W, variable intensity
• Transmitted illumination: LED 3W, variable intensity
• Power supply: 100–240V, internal
• Stand: Column type, metal, specimen holding clips included

Optional Accessories

X-Y mechanical stage 180 x 155 mm, travel 76 x 55 mm, with transparent base plate. Compatible with column stands. Rotatable stage 360° also available—polarisation filters and rotation accessories compatible.

Supply

Supplied with mains cable, spare fuse, dust cover and instruction manual. Packed in polystyrene box.
