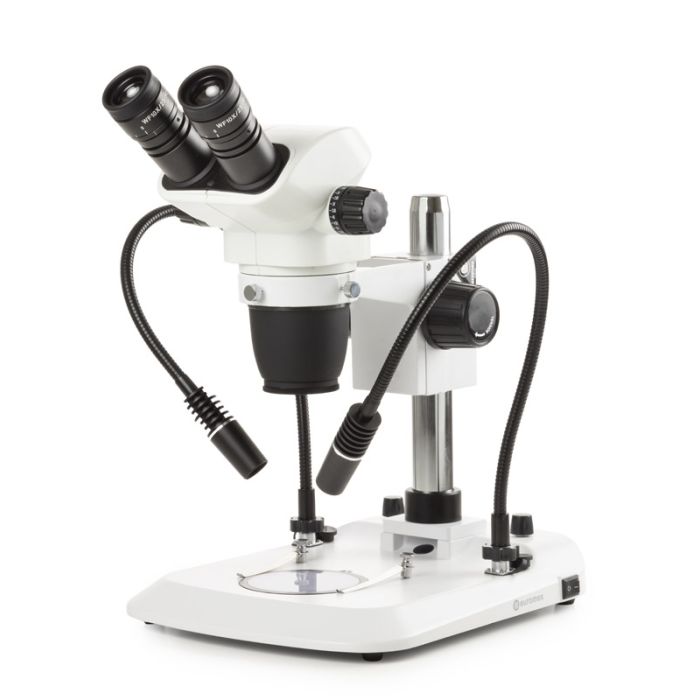

NexiusZoom EVO Binocular Stereo Microscope Euromex Column Stand PG Illumination

Binocular stereo microscope from the Euromex NexiusZoom EVO series. Plan achromatic zoom objective with 1:8.4 factor; working distance 110 mm. The 45° inclined binocular head features click-stops for repeatable zoom positioning during extended observation sessions. Column stand with adjustable LED illumination.

Optical Specifications

• Eyepieces: HWF10x/23 mm
• Objective: Plan achromatic zoom, factor 1:8.4
• Magnification range: 0.65x to 5.5x (with standard eyepieces)
• Field of view: 35.4 mm to 4.2 mm
• Working distance: 110 mm
• Optional objective lenses: 0.3x, 0.5x, 0.75x, 1.5x and 2.0x
• Optical treatment: Anti-fungal coating and anti-reflection coating on all optical components

Head and Ergonomics

• Type: Binocular with 45° inclined eyepiece tubes
• Interpupillary distance: Adjustable from 54 mm to 75 mm
• Click-stops: Yes — for precise zoom positioning

Stand and Illumination

• Stand: Ergonomic column design, metal construction with durable coating
• Incident illumination: Two adjustable 3W LED gooseneck arms, variable intensity
• Transmitted illumination: 3W LED, variable intensity
• Power supply: 100–240 V with internal power supply unit
• Sample clips: Two included as standard

Compatible Options and Accessories

Optional X-Y mechanical stage 180 x 155 mm with 76 x 55 mm travel range and transparent base plate. 360° rotatable stage, polarising filter and rotary filter below the objective available as optional accessories.

With additional eyepieces and objective lenses, total magnification range extends from 3.3x up to 220x. Consult lens compatibility with the stand in the accessories section.

Applications

Material surface analysis, biological sample preparation and observation, laboratory inspection and education. Working distance of 110 mm allows sample manipulation beneath the objective without obstructing the optical path.

Package Contents

Power cable, spare fuse, dust cover and instruction manual. Polystyrene packaging.
