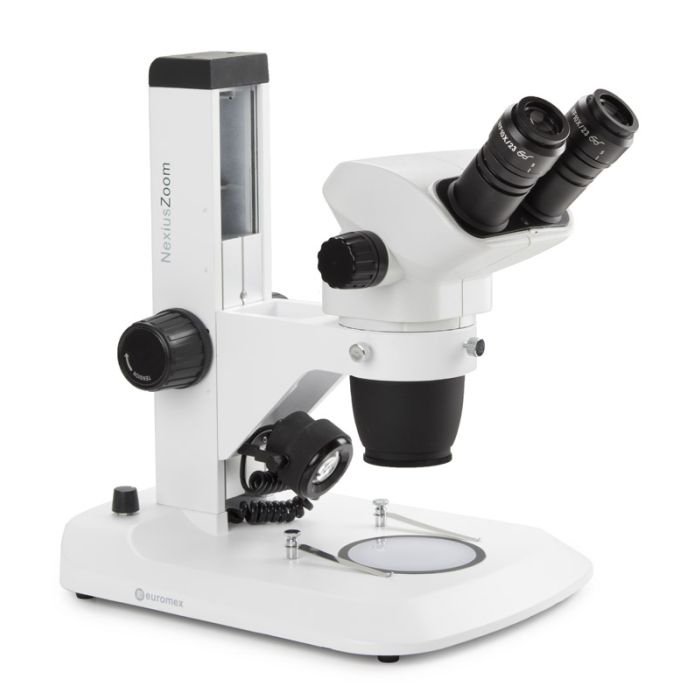

NexiusZoom EVO Binocular Stereo Microscope Euromex zoom 6.5x–23x

Binocular stereo microscope from the NexiusZoom EVO series, manufactured by Euromex. Plan achromatic zoom objective with a 1:8.4 ratio covering a magnification range of 0.65x–5.5x. With the standard HWF10x/23 mm eyepieces, the effective working range is 6.5x–23x. Field of view: 35.4 mm at the lower end, 4.2 mm at the upper end. Working distance 110 mm—allows specimen manipulation beneath the objective without interference.

Optics and Head

• Eyepieces: HWF10x/23 mm, wide-field plan
• Objective: Plan achromatic zoom, ratio 1:8.4, with click-stop positions
• Magnification range: 0.65x–5.5x (objective) / 6.5x–23x (with standard eyepieces)
• Field of view: 35.4 mm to 4.2 mm
• Working distance: 110 mm
• Head: Binocular, 45° inclined, interpupillary distance adjustable 54–75 mm
• Optical treatment: Anti-reflection and anti-fungus coating on all components

Stand and Illumination

Fixed-arm stand included. Incident and transmitted LED 3W illumination with independent intensity control. Internal power supply 100–240 V. Both illuminators can operate simultaneously. Two specimen holders included. Metal construction with durable painted finish.

• Incident illumination: LED 3W, variable intensity
• Transmitted illumination: LED 3W, variable intensity
• Power supply: 100–240 V, internal
• Accessories included: Two specimen holders, power cable, spare fuse, dust cover, instruction manual
• Packaging: Polystyrene box

Applications

Material surface analysis, component inspection, biological specimen preparation and observation. Suited for quality control laboratories, electronics, biology and university teaching. The 110 mm working distance allows comfortable manipulation beneath the objective.

Options and Accessories

The NexiusZoom EVO range accepts a range of optional accessories to extend its capabilities:

• Additional objective lenses: 0.3x, 0.5x, 0.75x, 1.5x and 2.0x (verify compatibility with stand)
• Maximum magnification range: Up to 220x with additional eyepieces and objectives
• X-Y mechanical stage: 180 x 155 mm, travel 76 x 55 mm, transparent base. Factory-fitted to new units only.
• Rotary stage: 360° with built-in polarising filter
• ESD-protected models: Available for inspection and assembly of components sensitive to electrostatic discharge
