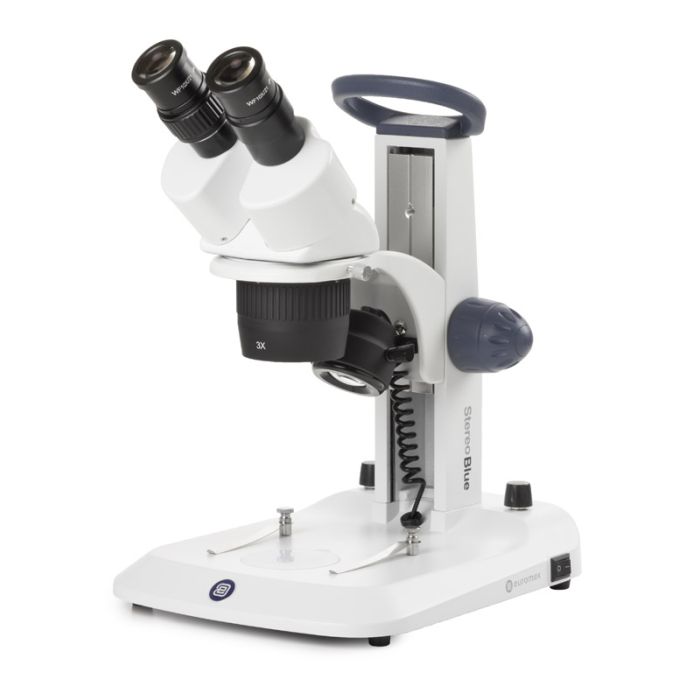

StereoBlue Binocular Stereo Microscope 10x/30x with LED Illumination

Binocular stereo microscope from the Euromex StereoBlue range. Suited for biology, entomology, geology, electronics inspection, jewellery and dental technology.

Optics and Head

• Eyepieces: Matched pair WF10x/21 mm with rubber eyecups
• Head: Binocular, 45° inclination
• Dioptre adjustment: On one eyepiece tube
• Interpupillary distance: Adjustable 55 mm to 75 mm
• Optical treatment: Anti-fungal and anti-reflection coatings on all lenses

Magnification and Field of View

• Turret: Dual rotating objectives 1x/3x
• Magnification: 10x/30x — extendable to 120x with optional accessories
• Field of view: 21 mm at 10x / 6.9 mm at 30x
• Working distance: 100 mm

Illumination

• Type: 3 W LED incident and transmitted
• Control: Intensity adjustable independently or simultaneously

Stand and Base

• Material: Die-cast metal alloy with hardened off-white finish
• Base: Flat, ergonomic design
• Focus: Macrometric with tension control
• Included base accessories: Two specimen clips, transparent stage plate and black/white stage plate Ø 60 mm

Supplied With

Power cable, dust cover, rubber eyecups, spare fuse, Ø 60 mm stage plates (transparent and black/white) and user manual. Packed in polystyrene box.

Applications

Dissection and inspection of biological specimens, entomological and geological analysis, quality control in electronics, jewellery and dental prosthetics. Well suited to higher education settings—robust build, good illumination coverage throughout the working distance.
