Vision Biological Microscope monocular/binocular/LED screen achromatic objectives DIN 4X 10X 40X 100X
Vision biological microscope available in monocular, binocular and 7" IPS screen configurations for shared viewing. Stain-resistant metal construction suited to intensive teaching use. WF10X/18 mm eyepieces and DIN achromatic objectives at 4X, 10X, 40X and 100X. Adjustable LED illumination. Monocular: 110 x 120 mm stage, N.A. 0.65 condenser. Binocular: double-layer mechanical stage, Abbe N.A. 1.25 condenser. Power supply 100–240 V, 50/60 Hz. 2-year warranty.
In stock
SKU:
118638
| SKU | Product Name | Price | Qty | |
|---|---|---|---|---|

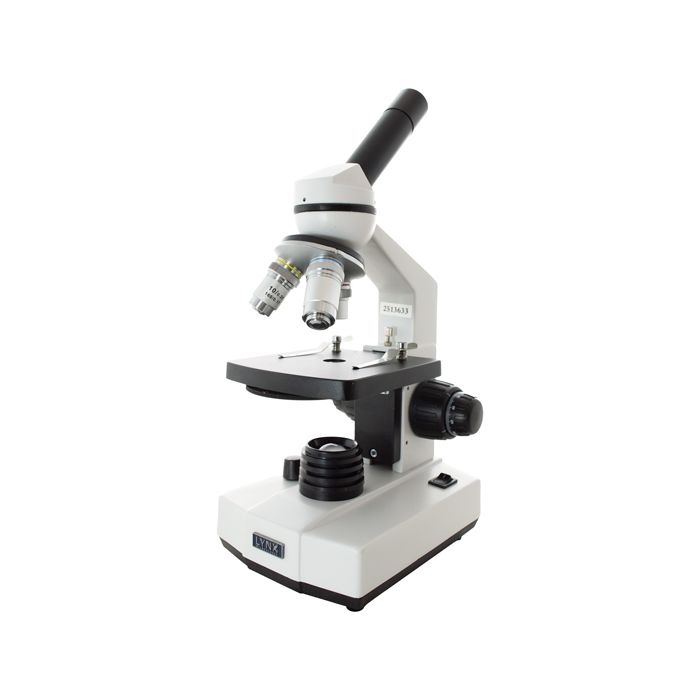

| MP01-001-001 | Vision Biological Microscope monocular head |
€207.38
|
|
|
| MPAC-055-001 | Attachable mechanical stage 110×120mm moving range: 60x30mm |
€35.04
|
|
|
| MPAC-054-001 | 195 Achromatic objective 60x/080 spring loaded for Vision |
€82.37
|
|
|
| MP01-002-001 | Vision biological microscope binocular head |
€370.26
|
|
|
| MP01-00D-001 | Vision biological microscope IPS screen head |
€693.00
|
|
Vision Biological Microscope — monocular, binocular and integrated screen models
Three configurations: monocular, binocular and a model with a 7" IPS screen. Stain-resistant metal frame handles daily classroom use.
Optics and head
- Eyepieces: WF10X/18 mm
- Objectives: DIN achromatic 4X, 10X, 40X and 100X (binocular and screen models); 4X, 10X and 40X on monocular
- Nosepiece: Quadruple on binocular and screen models; triple on monocular
- Head: 45° inclined, 360° rotatable
- Screen (specific model): 7" IPS — enables image display and group presentation without the eyepiece
Stage, focus and illumination
- Monocular — stage: 110 x 120 mm with specimen clips
- Monocular — condenser: N.A. 0.65 with iris diaphragm
- Binocular — stage: Double-layer mechanical stage with calibrated scales
- Binocular — condenser: Abbe N.A. 1.25 with iris diaphragm
- Focus: Coaxial coarse and fine adjustment on all models
- Illumination: Adjustable LED
Technical data and supply
- Power supply: 100–240 V, 50/60 Hz
- Warranty: 2 years
- Included accessories: Filters, dust cover and accessories
Typical applications
Biology, histology and microbiology teaching. The screen model is well suited to group demonstrations — no need for students to take turns at the eyepiece. The binocular with Abbe N.A. 1.25 condenser handles more demanding optical work.
| Brand | LYNX Microscopes |
|---|
