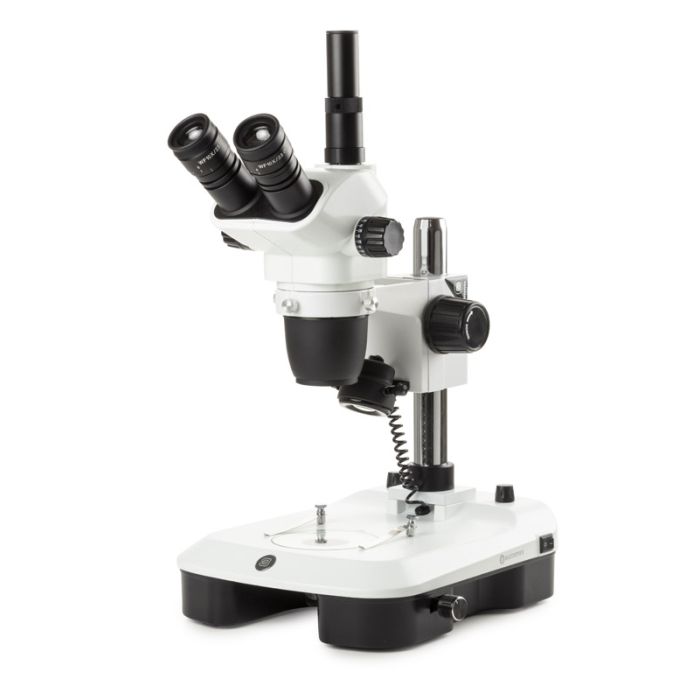

NexiusZoom EVO Trinocular Stereo Microscope with Column Stand and LED Mirror Illumination

Trinocular stereo microscope from the Euromex NexiusZoom EVO series. Plan achromatic zoom objective, ratio 1:8.4, with click-stops for repeatable positioning. Column stand fitted with 3W LED illumination and orientable deflection mirror. Suited for surface analysis, material inspection and biological sample examination.

Optics and Head

• Eyepieces: HWF10x/23 mm
• Head: Trinocular, inclined 45°
• Interpupillary distance: Adjustable 54 mm to 75 mm
• Beamsplitter: Fixed, 70% observation / 30% camera port
• Objective: Plan achromatic zoom, ratio 1:8.4
• Magnification range: 0.65x to 5.5x (with 10x eyepieces: 6.5x to 55x)
• Field of view: 35.4 mm to 4.2 mm
• Working distance: 110 mm
• Click-stops: Yes — standard on EVO models
• Optical treatment: Anti-reflection and anti-fungal coatings on all optical elements

Stand and Illumination

• Stand type: Ergonomic column stand, -M model
• Incident illumination: 3W LED with orientable deflection mirror, dimmable
• Transmitted illumination: 3W LED, dimmable
• Simultaneous use: Yes — both illuminators can operate together
• Power supply: 100–240 V, internal power supply
• Specimen clips: Two included
• Construction: Metal body with durable painted finish

Accessories and Options

Optional auxiliary objective lenses available at 0.3x, 0.5x, 0.75x, 1.5x and 2.0x — extending magnification up to 220x when combined with additional eyepieces. X-Y mechanical stage 180 x 155 mm, travel 76 x 55 mm, with transparent base plate; factory-fitted only. Rotating 360° stage with polarising filter also available.

Check lens compatibility with the stand in the accessories section.

Supply

• Power cable
• Spare fuse
• Dust cover
• Instruction manual
• Polystyrene box packaging
