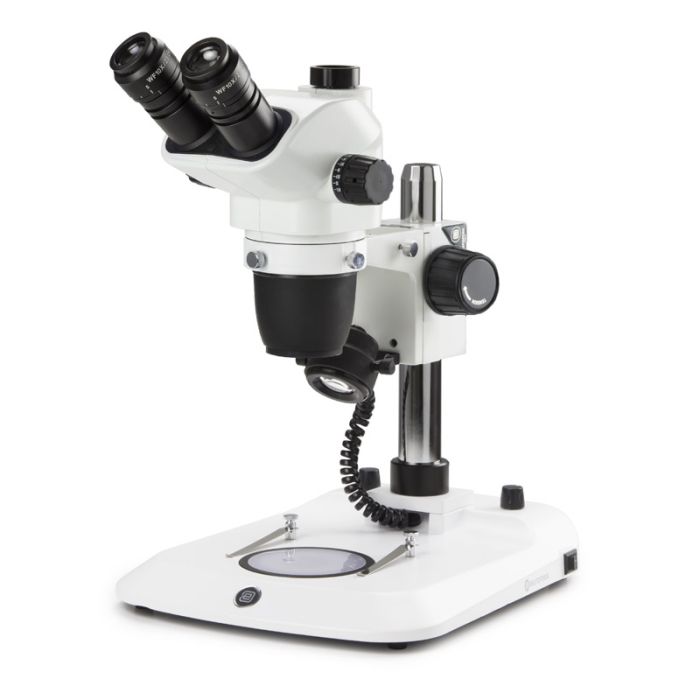

NexiusZoom EVO Trinocular Stereo Microscope Euromex

Trinocular stereo microscope from the NexiusZoom EVO series, manufactured by Euromex. Plan achromatic zoom objective with a 1:8.4 factor and magnification range of 0.65x to 5.5x. Standard HWF10x/23 mm eyepieces deliver 6.5x to 23x total magnification with a field of view from 35.4 mm down to 4.2 mm. All optical elements are anti-mould and anti-reflection coated.

Head and Optics

• Head: Trinocular, 45° inclined eyepiece tubes
• Interpupillary distance: 54 mm to 75 mm, adjustable
• Beamsplitter: Fixed 70% visual / 30% photo
• Eyepieces: HWF10x/23 mm
• Objective: Plan achromatic zoom, factor 1:8.4 (0.65x to 5.5x)
• Field of view: 35.4 mm to 4.2 mm
• Working distance: 110 mm
• Click-stops: Incorporated on EVO models

Stand and Illumination

Ergonomic column stand. Both incident and transmitted illumination—3W LED, independently adjustable. Internal 100–240V power supply. Sample holder clips included. Robust metal construction throughout.

• Incident illumination: 3W LED, adjustable
• Transmitted illumination: 3W LED, adjustable
• Power supply: 100–240V, internal
• Stand: Ergonomic metal column

Applications

Material surface analysis, electronic component inspection, and biological sample observation. Suitable for laboratory and teaching environments. Camera attachment via trinocular port.

Options and Accessories

• Optional objective lenses: 0.3x, 0.5x, 0.75x, 1.5x and 2.0x (total magnification achievable up to 220x with additional eyepieces)
• X-Y mechanical stage: Optional, 180 x 155 mm, travel 76 x 55 mm with transparent base — new units only, factory fitting required
• Polarisation: 360° rotatable stage with optional filter
• ESD protection: Antistatic models available for electronics applications

Supply

Supplied with power cable, spare fuse, dust cover and manual. Secure packaging.
