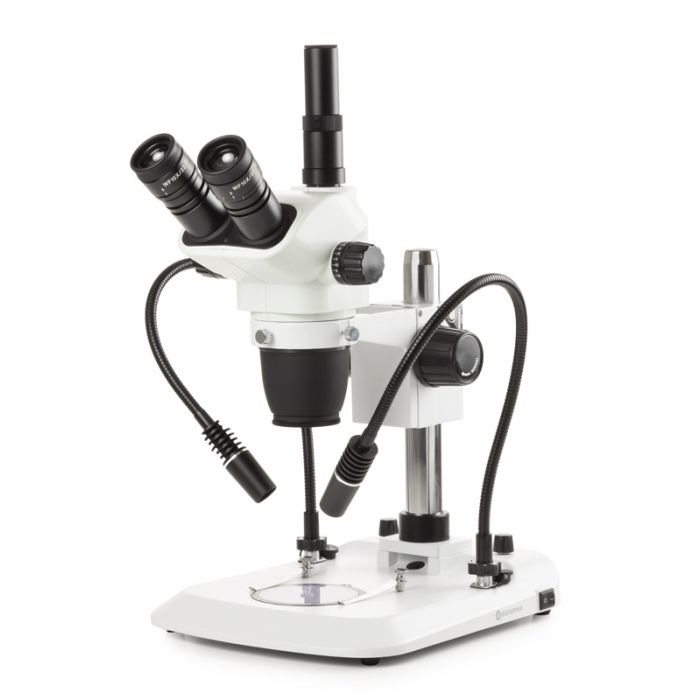

NexiusZoom EVO Trinocular Stereo Microscope with Dual Flex Arm and Transmitted LED Illumination

The NexiusZoom EVO from Euromex features a plan achromatic zoom objective and a 110 mm working distance. The stand incorporates two orientable LED flex arms for incident illumination and a transmitted LED base—both independently dimmable. Suited to surface inspection, biological specimens, and any application requiring three-dimensional imaging with extended depth of field.

Optics and Head

• Eyepieces: HWF10x/23 mm
• Head: Trinocular, 45° inclination
• Interpupillary distance: 54–75 mm, adjustable
• Beam splitter: Fixed, 70% observation / 30% camera port
• Objective: Plan achromatic zoom, 1:8.4 ratio
• Magnification range: 0.65x to 5.5x (with HWF10x eyepieces: 6.5x to 55x)
• Field of view: 35.4 mm to 4.2 mm
• Working distance: 110 mm
• Click-stops: Yes — EVO models only
• Optical treatment: Anti-fungus and anti-reflection coating on all optical components

Stand and Illumination

• Stand: Ergonomic column stand, metal with scratch-resistant finish
• Incident illumination: Two orientable LED flex arms, 3 W each, dimmable
• Transmitted illumination: LED 3 W, dimmable
• Power supply: 100–240 V with internal power supply
• Specimen clips: Two included

Magnification Range Extension

Optional auxiliary lenses (0.3x, 0.5x, 0.75x, 1.5x, 2.0x) extend the magnification range to 3.3x–220x when combined with additional eyepieces.

Optional X-Y mechanical stage, 180 x 155 mm, travel 76 x 55 mm. Available for new units only—factory fitting required.

Applications

Materials surface analysis, industrial inspection, biological specimens, electronics, and research laboratories. The dual flex arm illumination is particularly useful for irregular or reflective samples where precise control of the angle of incidence is required.

Package Contents

• NexiusZoom EVO trinocular stereo microscope
• Power cable and spare fuse
• Dust cover
• Instruction manual
• Polystyrene packaging box
