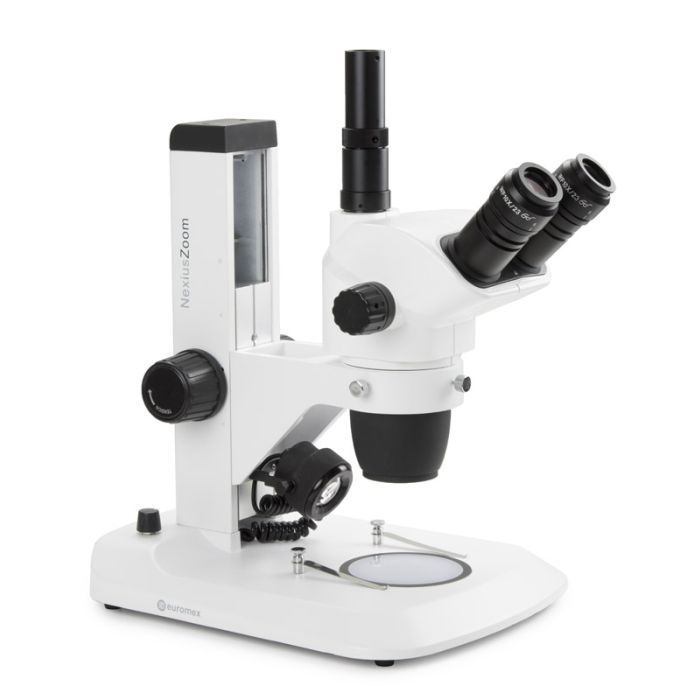

NexiusZoom EVO Trinocular Stereo Microscope by Euromex

Trinocular stereo microscope from the NexiusZoom EVO range by Euromex. Suited for surface observation and inspection, biological sample preparation, and laboratory or industrial applications requiring three-dimensional imaging with a wide zoom range. -S stand with 3W incident and transmitted LED illumination, independent intensity control, and internal 100–240V power supply.

Optics and Head

• Eyepieces: HWF10x/23 mm
• Head: Trinocular, 45° inclined
• Interpupillary distance: Adjustable 54–75 mm
• Beam splitter: Fixed, 70% visual / 30% camera port
• Click-stops: Included on EVO models
• Objective: Plan achromatic zoom, 1:8.4 factor
• Magnification range: 0.65x to 5.5x (with 10x eyepieces: 6.5x to 55x)
• Field of view: 35.4 mm to 4.2 mm
• Working distance: 110 mm
• Optical treatment: Anti-reflection and anti-fungal coatings

Stand and Illumination

Ergonomic fixed-arm stand with 3W LED illumination—both incident and transmitted. Each illuminator is independently adjustable. Internal 100–240V power supply. Metal construction with durable painted finish. Two specimen clamps included.

• Incident illumination: 3W LED, dimmable
• Transmitted illumination: 3W LED, dimmable
• Power supply: 100–240V, internal
• Specimen clamps: 2 units included

Accessories and Options

Optional auxiliary objective lenses (0.3x, 0.5x, 0.75x, 1.5x, 2.0x) extend magnification up to 220x. Verify lens compatibility with the stand before ordering. Further options:

• X-Y mechanical stage: 180 x 155 mm, travel 76 x 55 mm, with transparent base. Factory-fit only on new units
• Rotary stage: 360° with polarising filter
• Rotary filter: Mountable below the objective
• ESD models: Anti-static treatment for electronic component work

Package Contents

Power cable, spare fuse, dust cover, instruction manual. Shipped in polystyrene box.
