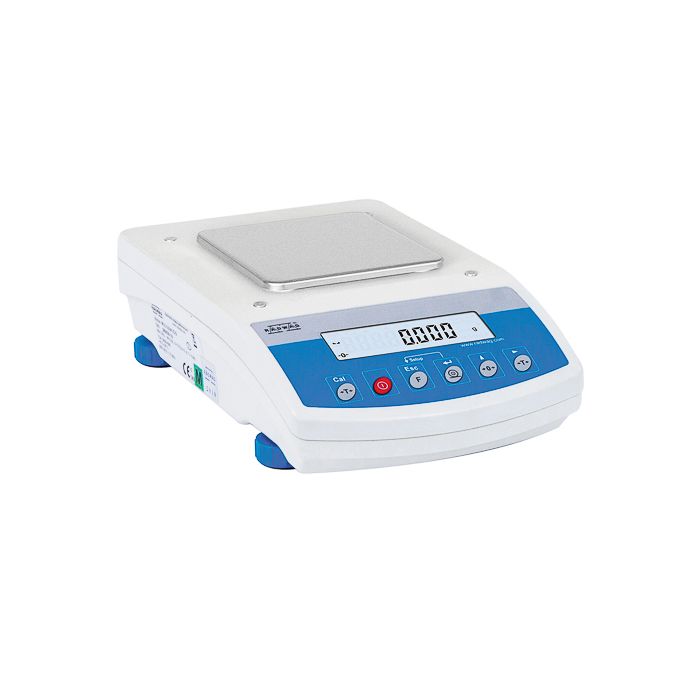

WLC Precision Balance Internal/External Calibration Stainless Steel Pan RS232

The WLC series covers a broad range of weighing applications in laboratory and industrial environments. Robust construction with a stainless steel pan and backlit LCD for clear readings under any lighting conditions. Flexible power options — mains or internal rechargeable battery — ensure uninterrupted operation during power cuts.

Key specifications

• Pan: Stainless steel
• Display: Backlit LCD
• Power supply: Mains 100–240 V / 50–60 Hz + internal rechargeable battery
• Connectivity: RS232
• Calibration: Two versions — external and internal
• Warranty: 2 years

Built-in applications

The WLC ships with ready-to-use operating modes — no additional configuration required:

• Parts counting: Unit control in production or warehouse settings
• +/– control: Weight verification within defined tolerances
• Percentage (%): Relative weighing against a reference sample
• Below-balance weighing: For suspended samples or density determination
• Impact testing: Dedicated application for industrial quality control

Dimensions by pan size

• 128 x 128 mm and 195 x 195 mm pan: 244 x 174 x 88 mm (L x W x H)
• 300 x 300 mm pan: 361 x 315 x 87 mm (L x W x H)
• 400 x 500 mm pan: 502 x 480 x 103 mm (L x W x H)

Supply and documentation

Each balance is supplied with a quick-start guide, warranty certificate, Quality Test Report and declaration of conformity. Lead time: 10–20 days.
