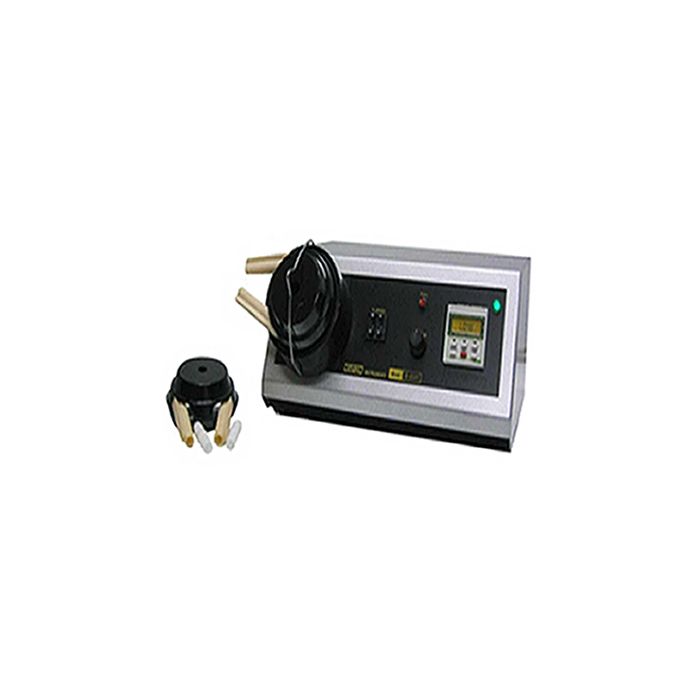

D-25VT 2-Roller Peristaltic Dispensing Pump with Cyclic Timer

The D-25VT is the cyclic timer variant of the D-25V series. Flow performance and digital control are identical; the addition is independent programming of dispense and stop intervals. Suited to repeated dosing applications where continuous operator attendance is not practical.

Control and Operation

• Flow rate: 2 to 750 ml/min
• Speed control: Digital, 0 to 99 % in 1 % increments
• Repeatability: 100 %
• Timer: Cyclic — dispense time and stop time programmed independently
• Flow reversal switch: Included
• Maximum flow pushbutton: Included
• Footswitch connection: Included
• Remote control: Included (0–10V signal version also available)
• Pilot light and main switch: Included

Pump Head and Tubing

This model is fitted with a 2-roller polycarbonate rotor head. The D-25VT range accepts alternative heads depending on application:

• Head L2000-3r: Cartridge with integrated removable tubing — released by a single retaining clip. Compatible with 8 mm tubing only.
• Head L1500-2r: For 2.4 mm wall tubing. Recommended for viscous products.
• Head 5000: Self-adjusting — compensates for tube wall wear during extended runs.
• Head CF-3r: Quick-load design for fast tube changes. Allows simultaneous use of two heads; tube diameter is limited to 4.8 mm in that configuration.

An assortment of tubing and connectors is included.

Technical Data

• Power supply: 230V 50/60 Hz
• Dimensions (W x D x H): 250 x 260 x 115 mm
• Weight: 3 kg
• Available versions: Rechargeable battery and 0–10V remote control

Typical Applications

Programmed dispensing on filling lines, dosing in continuous processes, reagent transfer in laboratory and pilot plant. The cyclic timer removes the need for constant supervision during repetitive tasks.
