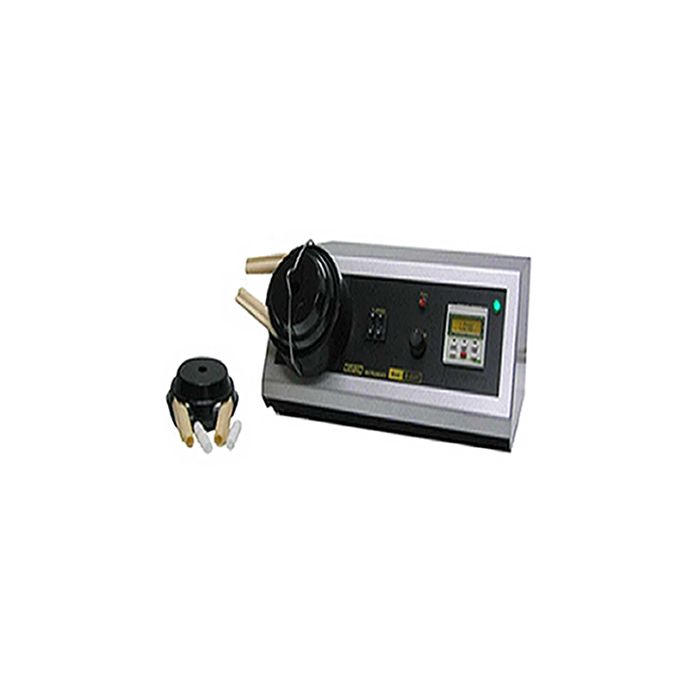

D-25VT 50-3R 240 Peristaltic Dispensing Pump with Cyclic Timer

Peristaltic pump from the D-25VT series — the D-25V platform with an integrated cyclic timer. Flow rate adjustable from 2 to 750 ml/min via digital control, 0 to 99 % in 1 % increments, with 100 % repeatability. The timer programs dispense time and pause time independently, allowing fully automated continuous dosing cycles with exact volume delivery on each cycle.

Key Specifications

• Flow rate: 2 to 750 ml/min, digitally adjustable
• Speed control: 0 to 99 % in 1 % increments, 100 % repeatability
• Head: Metal rotor with three rollers
• Timer: Cyclic — dispense time and pause time programmable independently
• Controls: Flow reversal switch, maximum flow pushbutton, pilot light, main power switch
• Connections: Foot pedal and remote control (0–10 V versions available)
• Power supply: 230 V 50/60 Hz
• Dimensions: 250 x 260 x 115 mm (W x D x H)
• Weight: 3 kg

Compatible Head Options

The pump accepts different heads depending on the application:

• L2000-3r head: Cartridge-based — tube is integrated into the cartridge, removable by releasing a retaining clip. Compatible with 8 mm tubing only.
• L1500-2r head: For 2.4 mm wall tubing. Suited to viscous fluids.
• 5000 head: Self-adjusting — compensates for tube wall wear during extended runs.
• CF quick-load head: Designed for fast tube changes. The CF-3r configuration allows two heads to run simultaneously; tube diameter is limited to 4.8 mm in that setup.

Typical Applications

Automated dosing in continuous processes where exact volume repeatability is required — container filling, in-line reagent addition, pharmaceutical and food processing applications. The cyclic timer removes manual intervention from repetitive dispensing cycles.

Supply Contents

Supplied with an assortment of tubing and connectors. Also available in rechargeable battery version.
